Industrial rigging is a critical process that involves the lifting, moving, and positioning of heavy machinery, equipment, and loads in various industries, particularly in construction, manufacturing, and mining.
Rigger Roles and Responsibilities
Riggers play a pivotal role in ensuring the safe and efficient execution of lifting operations. Their responsibilities encompass a wide range of tasks, from equipment inspection and selection to load securement and communication with other personnel involved in the lift.
- Equipment Inspection and Selection:
- Conduct thorough inspections of all rigging equipment, including slings, shackles, hooks, and wire ropes, to identify any defects, wear, or damage.
- Select appropriate rigging components based on the load characteristics, such as weight, size, and shape, as well as the environmental conditions and lift requirements.
- Load Securement:
- Determine the appropriate rigging techniques, including sling angles, hitches, and load balancing methods, to ensure the load is properly secured and balanced.
- Attach slings, shackles, and other rigging components to the load using correct techniques to prevent load shifting or tipping.
- Ensure proper load distribution and avoid side-loading or tip-loading hooks.
- Communication and Coordination:
- Establish and maintain clear communication with crane operators, signal persons, and other personnel involved in the lift.
- Understand and utilize standardized hand signals or radio communication protocols to convey instructions and information during the lift.
- Coordinate with the lift director or site supervisor to ensure all necessary preparations are completed before initiating the lift.
- Safety Oversight:
- Maintain vigilant oversight throughout the rigging process, promptly addressing any deviations from the plan or unsafe conditions.
- Ensure compliance with all applicable safety regulations, including those related to personal protective equipment (PPE) and fall protection.
- Cease operations immediately if any unsafe conditions arise, and take corrective actions to mitigate risks.
- Documentation and Record-Keeping:
- Maintain accurate records and documentation of rigging operations, including equipment inspections, lift plans, and any incidents or near-misses.
- Contribute to the development and implementation of rigging procedures and best practices within the organization.
Riggers play a crucial role in ensuring the safety and success of lifting operations by combining their technical expertise, attention to detail, and commitment to following established protocols. Their responsibilities extend beyond the physical tasks of rigging, encompassing communication, coordination, and a proactive approach to risk mitigation.
Essential Rigging Components
Rigging equipment encompasses a diverse array of specialized tools and hardware designed to securely attach, cradle, and distribute heavy loads during lifting operations. These components play a crucial role in ensuring the safe and efficient movement of machinery, materials, and other objects across various industries.
Slings
Slings are flexible load-bearing devices used to cradle and support loads during lifts. They come in various materials and configurations, each suited for specific applications:
- Wire Rope Slings: Constructed from stranded wire ropes, these slings offer high strength and resistance to abrasion and cutting. Ideal for lifting heavy, sharp-edged loads.
- Chain Slings: Comprised of alloy steel chains, these slings provide excellent wear resistance and are well-suited for hot material handling. However, they lack flexibility compared to other sling types.
- Synthetic Slings: Made from high-strength synthetic fibers like nylon or polyester, these lightweight slings offer flexibility and protection for finished surfaces. Commonly used for lifting irregular or delicate loads.
Shackles
Shackles are removable load-bearing connecting links used to form temporary joints between rigging components or to attach rigging gear to loads. Common types include:
- Anchor Shackles: Used to secure rigging to fixed anchor points.
- D-Shackles: Featuring a semicircular shape, these shackles are versatile and can be used in various rigging configurations.
- Bow Shackles: Designed with a circular shape, bow shackles are well-suited for applications requiring a wide opening.
Hooks
Hooks are essential components that provide a secure attachment point between the load and the lifting device (e.g., crane, hoist). Common types include:
- Eye Hooks: Featuring a circular eye for attaching slings or other rigging gear.
- Clevis Hooks: Designed with a hinged opening for easy attachment and detachment of rigging components.
- Swivel Hooks: Incorporating a rotating body that allows the load to pivot freely, preventing twisting and kinking of slings or ropes.
Spreader Bars and Lifting Beams
Spreader bars and lifting beams are specialized rigging devices used to distribute the load evenly across multiple attachment points, preventing uneven loading and potential accidents.
- Spreader Bars: Featuring multiple attachment points along their length, spreader bars distribute the load evenly and prevent load shifting or tipping.
- Lifting Beams: Designed for low-headroom applications, lifting beams connect to the load via a single lifting point, making them ideal for confined spaces.
Wire Ropes and Accessories
Wire ropes are essential components in rigging systems, providing the primary load-bearing connection between the load and the lifting device. Accessories like thimbles, clips, and turnbuckles are used to secure, terminate, and adjust wire ropes.
Proper selection, inspection, and maintenance of rigging equipment are crucial to ensuring the safety and integrity of lifting operations. Riggers must have a comprehensive understanding of each component’s capabilities, limitations, and appropriate applications to mitigate risks and prevent accidents.

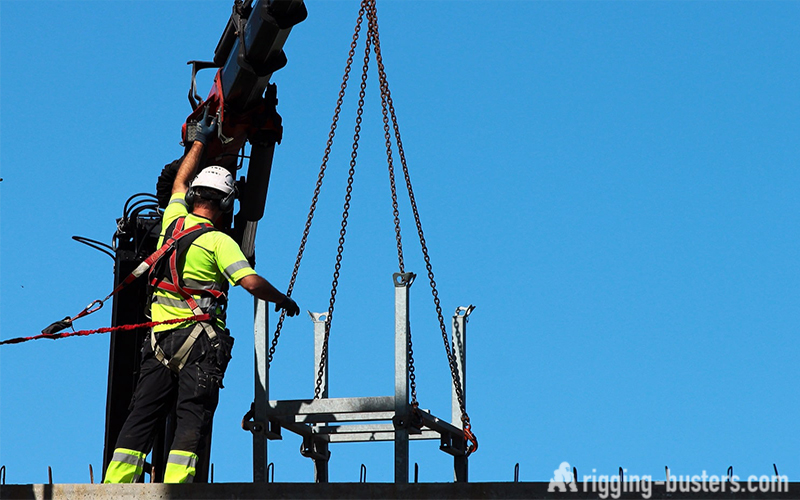

Rigging Safety Fundamentals
Rigging safety procedures are a set of guidelines and protocols designed to mitigate risks and prevent accidents during lifting operations. Adhering to these procedures is crucial for ensuring the safety of personnel, equipment, and the surrounding environment. Here are some essential rigging safety procedures:
- Inspection and Equipment Selection:
- Conduct thorough inspections of all rigging equipment before each use, checking for signs of wear, damage, or defects.
- Ensure that the selected rigging components have the appropriate capacity and are suitable for the specific load and environmental conditions.
- Remove any defective or damaged equipment from service and follow proper disposal or repair procedures.
- Load Assessment and Planning:
- Accurately determine the weight, dimensions, and center of gravity of the load to be lifted.
- Develop a comprehensive lift plan that considers factors such as load characteristics, rigging techniques, and potential hazards.
- Ensure that the lift plan is communicated to all personnel involved in the operation.
- Proper Rigging Techniques:
- Use appropriate sling angles and hitches to distribute the load evenly and prevent slippage or unbalanced loading.
- Avoid side-loading or tip-loading hooks, as this can significantly reduce their load-bearing capacity.
- Secure the load using appropriate rigging hardware, such as shackles and spreader bars, to prevent load shifting or tipping.
- Communication and Coordination:
- Establish clear communication protocols and use standardized hand signals or radio communication during the lift.
- Designate a qualified signal person to coordinate the lift and provide instructions to the crane operator.
- Ensure that all personnel involved in the lift are aware of their roles and responsibilities.
- Exclusion Zones and Personnel Safety:
- Establish and maintain exclusion zones around the lift area to prevent unauthorized personnel from entering.
- Never position personnel under a suspended load or in the potential fall zone.
- Ensure that all personnel involved in the lift are wearing appropriate personal protective equipment (PPE), such as hard hats, safety glasses, and steel-toed boots.
- Continuous Monitoring and Hazard Mitigation:
- Continuously monitor the lift for any potential hazards or deviations from the plan.
- Be prepared to stop the lift immediately if any unsafe conditions arise, and take corrective actions to mitigate risks.
- Ensure that the load is secured and stable before releasing it from the lifting device.
- Documentation and Record-Keeping:
- Maintain accurate records of rigging operations, including equipment inspections, lift plans, and any incidents or near-misses.
- Regularly review and update rigging procedures and safety protocols based on industry best practices and lessons learned.
By adhering to these rigging safety procedures, organizations can significantly reduce the risk of accidents, injuries, and property damage during lifting operations. It is crucial to provide comprehensive training to all personnel involved in rigging activities and foster a culture of safety and accountability within the workplace.
Mitigating Rigging Hazards Proactively
Identifying and mitigating potential hazards is a critical aspect of ensuring safe rigging operations. Riggers and site supervisors must employ effective strategies to identify and address potential risks before they lead to accidents or injuries. Here are some key rigging hazard identification strategies:
- Comprehensive Site Assessment:
- Conduct a thorough assessment of the work area, identifying potential hazards such as overhead obstructions, power lines, uneven terrain, or confined spaces.
- Evaluate environmental factors like weather conditions, wind speeds, and visibility that could impact the rigging operation.
- Load Evaluation:
- Accurately determine the weight, dimensions, and center of gravity of the load to be lifted.
- Assess the load’s characteristics, such as shape, surface finish, and potential instability, to identify any unique challenges or risks.
- Equipment Inspection:
- Implement a rigorous inspection protocol for all rigging equipment, including slings, shackles, hooks, and wire ropes.
- Check for signs of wear, damage, corrosion, or deformation that could compromise the equipment’s integrity and load-bearing capacity.
- Remove any defective or damaged equipment from service and follow proper disposal or repair procedures.
- Task Analysis:
- Break down the rigging operation into individual tasks and analyze each step for potential hazards.
- Identify pinch points, crush zones, or areas where personnel could be exposed to falling objects or suspended loads.
- Evaluate the need for specialized rigging techniques or equipment to mitigate identified risks.
- Personnel Competency Assessment:
- Ensure that all personnel involved in the rigging operation are properly trained, certified, and competent in their respective roles.
- Assess the level of experience and familiarity with the specific equipment, techniques, and hazards associated with the lift.
- Provide additional training or supervision as needed to address any knowledge or skill gaps.
- Communication and Coordination:
- Establish clear communication protocols and ensure that all personnel involved in the lift understand their roles and responsibilities.
- Designate a qualified signal person to coordinate the lift and maintain effective communication with the crane operator and riggers.
- Continuous Monitoring and Hazard Mitigation:
- Implement a system for continuous monitoring of the rigging operation, allowing for prompt identification and mitigation of any emerging hazards.
- Encourage a culture of safety where all personnel are empowered to stop the operation if they observe unsafe conditions or potential hazards.
By employing these hazard identification strategies, riggers and site supervisors can proactively identify and address potential risks, reducing the likelihood of accidents and ensuring the safety of personnel, equipment, and the surrounding environment.
Regular training, open communication, and a commitment to continuous improvement are essential for maintaining an effective hazard identification and mitigation process.
Rigging Hardware Selection Criteria
Selecting the appropriate rigging hardware is crucial for ensuring the safety and success of lifting operations. The selection process involves evaluating various factors to determine the most suitable equipment for the specific load, environment, and application. Here are the key criteria to consider when selecting rigging hardware:
- Load Characteristics:
- Weight: Accurately determine the weight of the load to ensure the selected hardware has sufficient capacity to handle the load with an appropriate safety factor.
- Size and Shape: Consider the dimensions and geometry of the load, as irregular shapes or large sizes may require specialized rigging hardware or configurations.
- Surface Finish: Evaluate the load’s surface finish to determine if protective measures, such as padding or softeners, are needed to prevent damage to the rigging hardware or the load itself.
- Environmental Conditions:
- Temperature: Certain rigging hardware materials may be better suited for extreme temperature environments, such as high-heat applications or cold climates.
- Corrosive Environments: If the rigging operation involves exposure to corrosive substances or environments, select hardware made from corrosion-resistant materials like stainless steel or synthetic fibers.
- Outdoor vs. Indoor: Outdoor applications may require additional considerations, such as weather protection or increased load ratings to account for wind and other environmental factors.
- Material Properties:
- Strength: Ensure that the selected rigging hardware has sufficient strength and load-bearing capacity for the intended application, considering factors like the material’s yield strength and ultimate tensile strength.
- Abrasion Resistance: For loads with sharp edges or rough surfaces, choose hardware materials with high abrasion resistance, such as wire rope or alloy steel chains.
- Flexibility: Certain applications may require flexible rigging hardware, such as synthetic slings or wire rope, to conform to irregular load shapes or facilitate easier handling.
- Industry Standards and Regulations:
- Compliance: Select rigging hardware that meets applicable industry standards and regulations, such as those set by OSHA, ASME, or other governing bodies.
- Certification and Testing: Ensure that the selected hardware has been properly certified and tested for its intended use, and that it carries the appropriate markings or documentation.
- Compatibility and Interoperability:
- Rigging System Integration: Consider how the selected hardware will integrate with other components of the rigging system, such as slings, shackles, and lifting devices, to ensure compatibility and proper load distribution.
- Attachment Points: Evaluate the attachment points on the load and the lifting device to ensure compatibility with the selected rigging hardware.
- Operational Considerations:
- Ease of Use: Consider the ergonomics and ease of use of the rigging hardware, particularly for applications that require frequent rigging and de-rigging.
- Maintenance and Inspection: Select hardware that is easy to inspect and maintain, and ensure that proper maintenance procedures are followed to extend the equipment’s service life.
By carefully evaluating these criteria and considering the specific requirements of the lifting operation, riggers and site supervisors can make informed decisions when selecting the appropriate rigging hardware. This proactive approach helps mitigate risks, ensure compliance with regulations, and ultimately contribute to the safe and efficient execution of lifting operations.
Rigging Pre-Job Safety Briefings
Rigging Pre-Job Safety Briefings are a critical component of ensuring safe and efficient rigging operations. These briefings provide an opportunity for all personnel involved in the lift to discuss potential hazards, review the lift plan, and establish clear communication protocols. The primary objectives of a rigging pre-job safety briefing are:
- Hazard Identification and Mitigation:
- Identify and discuss potential hazards associated with the specific lift, such as overhead obstructions, power lines, uneven terrain, or confined spaces.
- Evaluate environmental factors like weather conditions, wind speeds, and visibility that could impact the rigging operation.
- Assess the load’s characteristics, including weight, dimensions, shape, and potential instability, to identify unique challenges or risks.
- Discuss appropriate control measures and contingency plans to mitigate identified hazards.
- Lift Plan Review:
- Review the detailed lift plan, including the rigging techniques, equipment selection, and sequence of operations.
- Ensure that all personnel understand their roles, responsibilities, and specific tasks during the lift.
- Discuss any specialized rigging techniques or equipment required for the operation.
- Communication Protocols:
- Establish clear communication protocols, including the use of standardized hand signals or radio communication.
- Designate a qualified signal person to coordinate the lift and maintain effective communication with the crane operator and riggers.
- Review emergency communication procedures and contingency plans in case of unexpected events or incidents.
- Personnel Roles and Responsibilities:
- Clearly define the roles and responsibilities of each team member involved in the rigging operation.
- Ensure that all personnel are properly trained, certified, and competent in their respective roles.
- Address any knowledge or skill gaps through additional training or supervision.
- Safety Procedures and Regulations:
- Review relevant safety procedures, regulations, and industry best practices applicable to the specific rigging operation.
- Discuss the use of personal protective equipment (PPE) and fall protection measures, as required.
- Emphasize the importance of continuous monitoring and the authority to stop the operation if unsafe conditions arise.
By conducting comprehensive rigging pre-job safety briefings, organizations can foster a culture of safety, promote effective communication, and ensure that all personnel involved in the lift are fully prepared and aware of potential hazards and mitigation strategies. These briefings serve as a critical step in proactively identifying and addressing risks, ultimately contributing to the safe and successful execution of rigging operations.
Rigging Team Hierarchy Structure
In rigging operations, a well-defined team hierarchy structure is essential for ensuring effective communication, coordination, and clear delineation of roles and responsibilities. The rigging team hierarchy typically consists of the following key roles:
- Lift Director/Site Supervisor:
- Oversees the entire rigging operation and has the ultimate authority and responsibility for ensuring safety and compliance.
- Coordinates with project managers, engineers, and other stakeholders to develop comprehensive lift plans and risk assessments.
- Conducts pre-job safety briefings and ensures all personnel are properly trained and equipped.
- Has the authority to stop the operation if unsafe conditions arise.
- Lead Rigger:
- Serves as the technical expert and oversees the rigging crew’s activities.
- Responsible for selecting appropriate rigging equipment and techniques based on load characteristics and environmental conditions.
- Supervises the rigging crew during the setup, execution, and dismantling of the rigging system.
- Ensures compliance with safety protocols and industry standards.
- Riggers:
- Skilled technicians responsible for the hands-on tasks of assembling, inspecting, and operating the rigging system.
- Conduct thorough inspections of rigging equipment and ensure proper load securement.
- Follow the lead rigger’s instructions and communicate effectively with other team members.
- Maintain situational awareness and report any potential hazards or unsafe conditions.
- Signal Person:
- Acts as the primary communication link between the riggers and the crane operator.
- Utilizes standardized hand signals or radio communication to convey instructions and coordinate the lift.
- Maintains a clear line of sight with the load and the crane operator throughout the operation.
- Ensures the lift area is clear of unauthorized personnel and potential hazards.
- Crane Operator:
- Responsible for operating the crane or lifting device in accordance with the signal person’s instructions.
- Maintains communication with the signal person and follows established protocols.
- Ensures the crane is properly set up, inspected, and operated within its rated capacity.
- Monitors the load and surrounding area for potential hazards or obstructions.
This hierarchical structure promotes clear lines of authority, effective communication, and a shared understanding of roles and responsibilities among all team members. Each individual plays a crucial role in ensuring the safe and efficient execution of rigging operations, with the lift director/site supervisor serving as the ultimate authority and decision-maker.
Effective teamwork, coordination, and adherence to established protocols are essential for mitigating risks and preventing accidents during rigging operations. Regular training, drills, and open communication channels help reinforce this hierarchy and foster a culture of safety within the rigging team.
Rigger Certification and Training
Rigger certification and training are essential components in ensuring the safety and competency of individuals involved in rigging operations. Proper training and certification programs equip riggers with the necessary knowledge, skills, and qualifications to perform their duties effectively and mitigate potential risks associated with lifting and moving heavy loads.
There are typically three levels of rigger certification, each with its own set of requirements and responsibilities:
- Rigger Level I:
- Rigger Level I certification is the entry-level qualification for riggers.
- Candidates must demonstrate the ability to inspect rigging equipment, identify and attach basic hitch configurations, recognize potential hazards, use signaling procedures, and operate various rigging equipment and basic hitches.
- Training covers topics such as sling types, rigging hardware, lifting devices, angles and stresses, sling hitches, crane operations, communication, and hand signals.
- Rigger Level II:
- Rigger Level II certification is a more advanced level, requiring a deeper understanding of rigging principles and techniques.
- Candidates must possess Rigger Level I knowledge and skills, as well as the ability to calculate load weights, determine lift points, select appropriate rigging based on the load, and understand load dynamics and associated risks.
- Training delves into topics like weight calculations, load capacity, center of gravity, and more in-depth coverage of rigging equipment and techniques.
- Rigger Level III:
- Rigger Level III is the highest level of certification, representing a comprehensive mastery of rigging principles and practices.
- In addition to Rigger Level I and II knowledge and skills, candidates must demonstrate an understanding of stability, load charts, wire rope slings, chain slings, crane safety, and worksite awareness.
- Training covers advanced topics such as stability calculations, load chart interpretation, specialized rigging equipment, and worksite hazard assessment.
Rigger certification programs typically involve a combination of classroom instruction, hands-on training, and practical assessments. Classroom instruction covers theoretical concepts, regulations, and safety protocols, while hands-on training allows riggers to develop practical skills in a controlled environment under the supervision of experienced instructors.
Practical assessments, both written and performance-based, are used to evaluate a candidate’s knowledge, skills, and ability to apply rigging principles in real-world scenarios. These assessments ensure that certified riggers possess the necessary competencies to perform their duties safely and effectively.
In addition to initial certification, riggers are often required to undergo periodic refresher training and recertification to maintain their qualifications and stay up-to-date with industry best practices, regulatory changes, and advancements in rigging techniques and equipment.
Rigger certification and training programs are typically offered by accredited training providers, industry associations, or educational institutions. Many organizations and regulatory bodies, such as OSHA, ASME, and ANSI, have established standards and guidelines for rigger training and certification to ensure consistency and quality across the industry.
By investing in rigger certification and training, organizations can ensure that their rigging personnel possess the necessary knowledge, skills, and qualifications to perform their duties safely and efficiently, ultimately reducing the risk of accidents, injuries, and property damage associated with rigging operations.
Rigger-Operator Communication Protocols
Effective communication between riggers and crane operators is paramount for ensuring safe and efficient rigging operations. Clear and standardized communication protocols are essential to prevent misunderstandings, minimize risks, and coordinate the intricate movements involved in lifting and positioning heavy loads.
- Standardized Hand Signals:
- A comprehensive set of hand signals should be established and consistently used for communication between riggers and crane operators.
- These hand signals should be based on industry standards, such as those outlined by OSHA or ASME, to ensure universal understanding and compliance.
- Hand signals should be clear, unambiguous, and easily recognizable, even from a distance or in low-light conditions.
- All personnel involved in the rigging operation should be thoroughly trained in the proper use and interpretation of hand signals.
- Radio Communication:
- When hand signals are not practical or visible, radio communication should be used as the primary means of communication between riggers and crane operators.
- Dedicated radio channels or frequencies should be established for rigging operations to minimize interference and ensure clear communication.
- Radio communication protocols should be established, including the use of standardized terminology, call signs, and procedures for initiating and confirming communications.
- Radio equipment should be properly maintained, and battery levels should be checked regularly to ensure reliable communication.
- Hands-free or voice-activated radio systems can be used to facilitate communication while allowing riggers to maintain control of the load.
- Communication Procedures:
- A designated signal person should be assigned to coordinate communication between the riggers and the crane operator.
- The signal person should have a clear line of sight to the load and the crane operator at all times.
- All instructions and communications should be concise, clear, and unambiguous, using standardized terminology and avoiding slang or colloquialisms.
- Repeat-back procedures should be implemented, where the crane operator repeats the instructions received from the signal person to confirm understanding.
- Emergency stop signals or procedures should be established and clearly communicated to all personnel involved in the rigging operation.
- Pre-Job Briefings:
- Before each rigging operation, a pre-job briefing should be conducted to review the communication protocols, hand signals, and radio procedures.
- The briefing should include all personnel involved in the operation, including riggers, crane operators, signal persons, and supervisors.
- Any potential communication challenges or site-specific considerations should be discussed and addressed during the briefing.
- Continuous Monitoring and Feedback:
- During the rigging operation, continuous monitoring and feedback should be maintained to ensure effective communication and address any potential issues or misunderstandings.
- Riggers and crane operators should be encouraged to communicate any concerns or uncertainties promptly and clearly.
- Regular reviews and debriefings should be conducted to identify areas for improvement in communication protocols and address any lessons learned.
By implementing and adhering to rigorous communication protocols, riggers and crane operators can establish a shared understanding, coordinate their actions effectively, and mitigate the risks associated with rigging operations. Clear communication is a critical component of a comprehensive safety culture and plays a vital role in preventing accidents, injuries, and property damage.
Environmental Exposure Considerations
Environmental factors can significantly impact the performance and longevity of rigging equipment, making it crucial to consider potential exposure during the selection and maintenance processes. Here are some key environmental exposure considerations for rigging operations:
- Temperature Extremes:
- High Temperatures: Exposure to elevated temperatures can degrade the strength and integrity of certain rigging materials, particularly synthetic fibers like nylon or polyester.
- Synthetic slings may require derating or replacement at temperatures above their rated limits, typically around 180°F (82°C).
- Metal components, such as shackles and hooks, can also be affected by high temperatures, leading to reduced strength and increased wear.
- Low Temperatures: Extremely cold conditions can cause materials like steel to become brittle and more susceptible to fractures or failures.
- Wire rope slings and chains may require special handling or derating in sub-freezing temperatures.
- Synthetic slings can also become stiff and less flexible in cold environments, potentially affecting their performance.
- High Temperatures: Exposure to elevated temperatures can degrade the strength and integrity of certain rigging materials, particularly synthetic fibers like nylon or polyester.
- Corrosive Environments:
- Exposure to corrosive substances, such as acids, alkalis, or saltwater, can accelerate the degradation of rigging equipment, particularly metal components.
- Stainless steel or corrosion-resistant materials may be required for rigging operations in highly corrosive environments.
- Regular inspections and maintenance are crucial to detect and address any signs of corrosion or material deterioration.
- Abrasive Environments:
- Environments with abrasive particles, such as sand, grit, or debris, can cause excessive wear and damage to rigging equipment, particularly slings and wire ropes.
- Protective coverings or sleeves may be necessary to shield slings and ropes from abrasive surfaces or materials.
- Regular inspections and replacement of worn or damaged components are essential in abrasive environments.
- Ultraviolet (UV) Radiation:
- Prolonged exposure to UV radiation from sunlight can degrade synthetic materials like nylon or polyester, causing them to become brittle and lose strength over time.
- Synthetic slings and ropes should be stored in UV-resistant containers or sheltered areas when not in use.
- Periodic replacement of UV-exposed synthetic rigging components may be necessary to maintain safety and performance.
- Moisture and Humidity:
- High humidity or exposure to moisture can accelerate corrosion in metal components and cause degradation of synthetic materials.
- Proper storage and drying procedures should be followed to prevent moisture accumulation in rigging equipment.
- Rust-resistant coatings or materials may be required in environments with high moisture levels.
- Chemical Exposure:
- Certain chemicals, solvents, or contaminants can react with and degrade the materials used in rigging equipment, compromising their strength and integrity.
- Compatibility between rigging materials and potential chemical exposures should be evaluated, and appropriate protective measures or alternative materials should be considered.
- Regular inspections and replacement of affected components may be necessary in chemically hazardous environments.
To mitigate the risks associated with environmental exposure, riggers and site supervisors should carefully evaluate the operating conditions and select rigging equipment suitable for the specific environment. Proper maintenance, inspection, and replacement protocols should be implemented to ensure the continued safety and performance of rigging components.
Additionally, providing appropriate training and personal protective equipment (PPE) to personnel can further minimize the impact of environmental factors on rigging operations.
Wire Rope Inspection Techniques
Wire rope inspection is a critical aspect of ensuring the safety and reliability of rigging operations. Proper inspection techniques are essential for detecting potential defects, wear, or damage that could compromise the integrity of the wire rope and lead to failures or accidents. Here are some commonly used wire rope inspection techniques:
- Visual Inspection:
- Conduct a thorough visual examination of the entire length of the wire rope, looking for signs of wear, corrosion, kinking, bird-caging, or other visible defects.
- Pay particular attention to areas of high stress or contact, such as near terminations, sheaves, or drums.
- Use appropriate lighting and magnification tools, if necessary, to enhance visibility and detect smaller defects.
- Tactile Inspection:
- Run your hands along the wire rope, feeling for any irregularities, broken wires, or areas of excessive wear.
- Use a piece of cloth or cotton waste to catch on any protruding broken wires, making them easier to detect.
- Employ a marlin spike or awl to gently probe between the strands and wires, exposing any hidden broken wires or internal damage.
- Diameter Measurement:
- Measure the diameter of the wire rope at multiple points along its length using calipers or a specialized wire rope gauge.
- Compare the measured diameters to the original nominal diameter to detect any significant reductions, which may indicate internal or external wear.
- Excessive diameter reduction can be an indicator of the need for wire rope replacement.
- Lay Length Measurement:
- Measure the lay length, which is the distance required for a single strand to complete one revolution around the rope’s core.
- Compare the measured lay length to the original specifications, as significant changes can indicate internal damage or distortion.
- Increased lay length may suggest core protrusion or internal wire breaks, while decreased lay length can indicate core compression or external wire breaks.
- Non-Destructive Testing (NDT):
- Employ advanced NDT techniques, such as electromagnetic testing or ultrasonic guided wave evaluation, to detect internal defects or wire breaks that may not be visible on the surface.
- NDT methods can provide quantitative data on the condition of the wire rope, allowing for more accurate assessments and predictive maintenance.
- NDT inspections should be performed by trained and certified personnel using calibrated equipment.
- Record-Keeping and Trend Analysis:
- Maintain detailed records of wire rope inspections, including dates, findings, and any corrective actions taken.
- Analyze inspection data over time to identify trends or patterns that may indicate the need for preventive maintenance or replacement.
- Establish criteria for wire rope discard based on industry standards, manufacturer recommendations, and site-specific risk assessments.
Effective wire rope inspection requires a combination of visual, tactile, and quantitative techniques, as well as adherence to established protocols and record-keeping practices. Regular inspections, performed by trained personnel, can help identify potential issues early and prevent catastrophic failures during rigging operations.
Additionally, implementing a comprehensive inspection program can optimize wire rope service life, reduce maintenance costs, and enhance overall operational safety.
More useful info you can find 👉 here 👈
